Do you know how scientists analyze 1000 genes at once? Microarray technology makes this possible. It is a powerful tool that allows scientists to study gene signatures and expression analysis at a larger scale, helping them understand the gene pattern linked to diseases, drug responses, and biological processes.
Gene microarray technology involves a small chip coated with 1000 or even millions of known DNA fragments. When this chip is exposed to RNA or DNA from a sample, complementary pairing occurs, producing a fluorescent signal. These signals provide insights into which genes are active, inactive, or altered under specific conditions.
This technique is widely used in medical research, from identifying cancer biomarkers to studying genetic variations like single-nucleotide polymorphisms (SNPs). By enabling scientists to analyze gene activity at the genomic level, microarrays have contributed to how researchers understand biology, disease mechanisms, and personalized medicine.
Below, you’ll explore the concept in depth by uncovering processes, applications, and more.

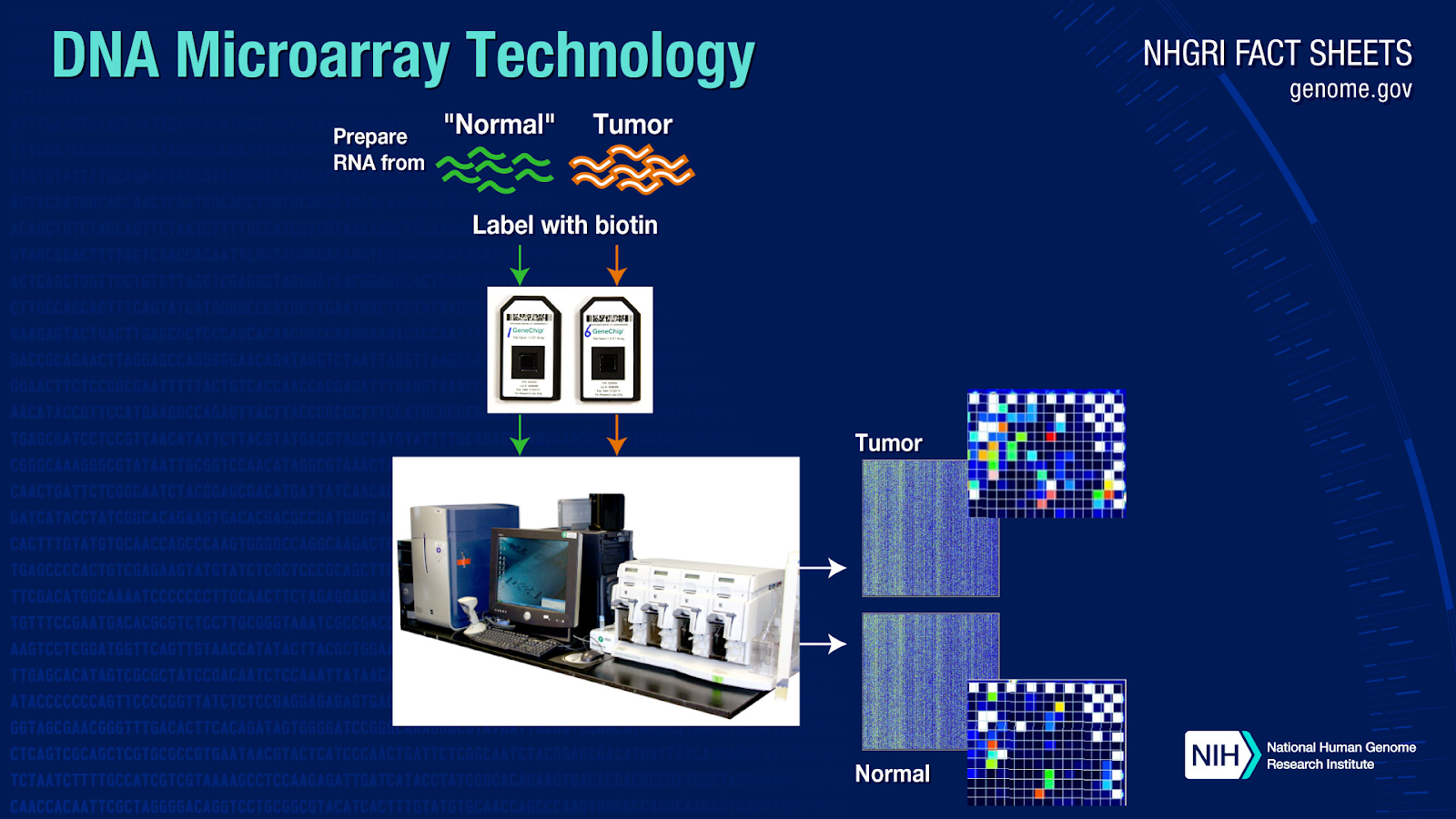

Process of Gene Microarray Analysis
Source: NHGRI
Below is the in-depth structured workflow of gene microarray analysis. Following this systematic process of raw microarray data analysis and collection, identifying significant expression patterns, and deriving meaningful biological insights can contribute to scientific discovery and medical advancements, helping you achieve better.
1. Hybridization & Image Acquisition
Hybridization is a key step in microarray experiments. In this step, labeled cDNA or cRNA (derived from sample RNA) binds to complementary probes on the microarray chip. After hybridization, the slide is washed to remove unbound sequences. A fluorescence scanner then captures signal intensities, reflecting gene signature levels in the sample.
2. Raw Data Extraction
Once hybridization and scanning are complete, raw fluorescence intensity values are extracted from the microarray images. These values represent gene signature levels but may contain background noise, variability, and systematic biases. Before further analysis, data preprocessing steps are necessary to correct these factors and ensure accuracy.
3. Normalization & Scaled Data
Normalization is a critical preprocessing step that adjusts for technical variations and ensures that gene signatures and expression values are comparable across different samples. Methods such as quantile normalization, robust multi-array averaging (RMA), and cyclic LOESS help standardize data distribution and eliminate batch effects. Proper normalization improves data reliability and allows meaningful biological comparisons. After normalization, the expression values are scaled to ensure uniformity and facilitate comparison between genes and conditions.
4. Differentially expressed genes
Statistical analyses are performed on the normalized data to identify differentially expressed genes. Comparative methods such as t-tests, ANOVA, and non-parametric tests assess the significance of expression changes between experimental conditions. Since thousands of genes are analyzed simultaneously, multiple testing correction methods, such as the Benjamini-Hochberg procedure, are applied to control the false discovery rate and prevent false positives. Following statistical analysis, a refined list of differentially expressed genes is generated. The identification of differentially expressed genes serves as the foundation for subsequent interpretation and pattern recognition.
5. Identify and partition expression patterns (Cluster)
Differentially expressed genes are categorized based on the magnitude and direction of their expression changes. Clustering techniques such as hierarchical clustering and k-means clustering help group genes with similar expression profiles, which helps in making clusters. Once clusters are established, gene signatures and expression patterns are examined to determine broader regulatory mechanisms. These patterns provide insights into underlying biological processes and molecular pathways.
6. Annotation (UniGene, Entrez Gene, Gene Ontologies, etc.)
The biological interpretation of differentially expressed genes begins with annotation using genomic databases such as UniGene, Entrez Gene, and Gene Ontology (GO). Annotation links gene expression data to known biological functions, cellular components, and molecular pathways, providing context for observed expression changes. This step is essential for understanding gene functions and interactions.
7. Gene summaries
Each differentially expressed gene is summarized based on its known functions, interactions, and involvement in biological processes. Summaries include information from scientific literature, genomic databases, and experimental studies, helping researchers interpret the significance of identified genes in the context of their study.
8. Biological themes (pathways, molecular function, etc.)
The final stage of microarray data analysis focuses on integrating expression data with known biological themes. Pathway analysis, molecular function classification, and regulatory network mapping provide a comprehensive view of gene interactions.
Overall, these steps are crucial to accurately studying gene expression at a larger scale. Below, we will explore the application of microarray technology.

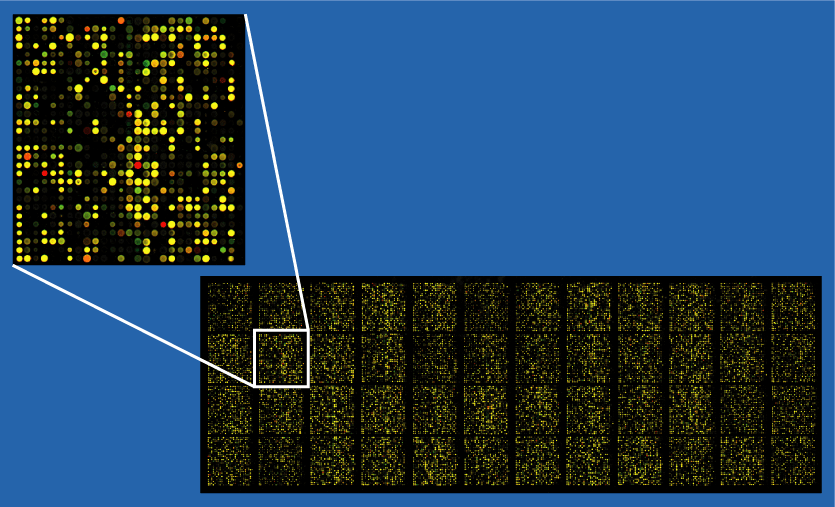

Applications of Gene Microarray Technology
Source: Wikipedia Common
Microarray technology has a wide range of applications in genomics and has contributed hugely to molecular biology and biomedical research. It is primarily used for gene signatures, expression analysis, and single nucleotide polymorphism (SNP) detection. Let’s explore the applications of this technology in the fields below.
1. Gene Expression Analysis
Microarrays are used for in-depth studies of gene signatures and expression in different biological conditions. The high-density microarrays contribute to comparing mRNA levels between samples and identifying differentially expressed genes in diseases like cancer, neurological disorders, and infectious diseases.
For example, the Oncotype DX test uses microarray-based gene expression analysis, allowing the researcher to do a risk analysis of distant recurrence in early-stage, estrogen receptor-positive breast cancer and aids in determining whether adjuvant chemotherapy is necessary. Research has shown that breast oncology specialists often predict a higher risk of recurrence compared to the actual recurrence scores.
2. Genotyping and SNP Analysis
Microarrays enable high-throughput genotyping by detecting SNPs across the genome. These arrays are used for linkage and association studies, helping identify genetic risk factors for diseases. They also play a role in pharmacogenomics, where genetic variations influence drug response, aiding in personalized medicine approaches.
For example, genome-wide association studies (GWAS) using microarray-based SNP analysis have significantly advanced our understanding of Alzheimer’s disease (AD) by identifying genetic risk factors associated with disease progression and biomarkers such as Aβ42 (amyloid-beta 42) and tau levels.
3. Cancer Research and Diagnostics
Microarrays provide insights into cancer biology by analyzing DNA copy number variations, gene amplifications, and loss of heterozygosity. Exon-specific arrays allow for the detection of alternative splicing events and mRNA processing changes in tumor cells. These techniques help classify cancer subtypes and guide targeted therapies.
For example, microarray-based gene expression profiling has transformed breast cancer treatment. MammaPrint is an FDA-cleared genetic test that analyzes 70 key genes to determine the risk of distant recurrence in early-stage breast cancer. It helps doctors decide whether a patient needs chemotherapy or can safely avoid it.
4. Infectious Disease and Microbiology
Microarrays assist in identifying pathogens and characterizing their gene expression patterns. They are used for microbial genotyping, antibiotic resistance studies, and detecting viral and bacterial infections. This application is crucial for disease diagnostics and epidemiological surveillance.
For example, gene microarray technology has significantly advanced the field of infectious disease diagnostics, enabling rapid and extensive detection of pathogens. A notable real-world application is the development of the Virochip, a pan-viral DNA microarray platform designed to identify a wide array of viruses in clinical samples.
5. Drug Discovery and Toxicology
Pharmaceutical companies use microarrays to study gene expression changes in response to drug treatments. This helps assess drug efficacy, predict toxicity, and understand metabolic pathways, accelerating drug development and improving safety profiles.
For example, a Phase III clinical trial by Novartis Pharmaceuticals used microarray-based gene expression profiling to predict the success or failure of Gleevec (Imatinib), a drug used to treat chronic myeloid leukemia (CML). Researchers analyzed gene expression patterns in patients before treatment and identified a 31-gene “No Response” signature. Patients with this genetic profile had a 200-fold higher chance of failing therapy, allowing doctors to avoid ineffective treatment.
6. Epigenetics and Functional Genomics
Tiling arrays and DNA methylation arrays are used to study epigenetic modifications, such as DNA methylation and chromatin interactions. ChIP-on-chip technology helps map DNA-protein interactions, providing insights into gene regulation and transcriptional control mechanisms.
For example, researchers used the Illumina HumanMethylation450K microarray to study DNA methylation patterns in colorectal cancer (CRC). This high-throughput microarray technology enabled them to analyze differentially methylated loci between cancerous and normal tissues.
Microarrays have contributed to the development and study of genomics, offering high-throughput, parallel analysis that provides valuable insights. However, this technology offers some limitations that are crucial to understand; let’s explore them below.
Limitations and Future Prospects
Although gene microarray analysis offers many advantages, it also has some limitations that need to be addressed. Microarray data analysis faces challenges such as variability in study design, platform compatibility issues, and more. However, advancements in bioinformatics, machine learning, and next-generation sequencing (NGS) are helping overcome these challenges. Let’s explore both of these below.
Limitations
Below are the four major challenges faced by microarrays in experiments. Let’s address them to avoid data inconsistencies, false positives, and technical limitations that can impact the accuracy and reliability of gene expression analysis.
1. Non-Linear Signal Response:
The fluorescence signal from a microarray spot is not always directly proportional to the target molecule’s concentration. At high concentrations, signals can saturate; at low concentrations, binding may be undetectable, limiting the linear dynamic range.
2. Non-Specific Binding:
Similar sequences can bind to the same probe, leading to cross-hybridization. This is particularly problematic for gene families or splice variants, where probes may not distinguish between closely related sequences, resulting in ambiguous data.
3. Limited Detection Scope:
Microarrays can only detect sequences for which probes are designed. Unknown or unannotated sequences, including novel genes or non-coding RNAs, remain undetected. This reliance restricts the discovery of new genetic elements.
4. Detection Thresholds:
Microarrays may lack the sensitivity to detect genes expressed at low levels, and their dynamic range is constrained by background noise and signal saturation, potentially missing subtle but biologically significant changes.
Future potential
DNA microarrays are being rapidly phased out in favor of sequencing methods. It predicts that within 5–10 years, microarrays will be fully replaced by sequencing for most assays, except for some genotyping applications. The landscape of genomic analysis is undergoing a significant transformation with the rise of next-generation sequencing (NGS) technologies. These advancements are addressing many limitations inherent in traditional DNA microarrays.
Advantages of Next-Generation Sequencing (NGS):
- Unbiased Detection: NGS doesn’t rely on predefined probes, allowing for the discovery of novel transcripts, gene fusions, and rare variants that microarrays might miss. Illumina
- Quantitative Accuracy: By counting individual sequence reads, NGS provides a direct and linear measurement of nucleic acid abundance, offering a broader dynamic range compared to microarrays.
- Cost Efficiency: The cost of sequencing has been decreasing rapidly, making NGS increasingly competitive with microarrays.
The trend suggests a gradual shift towards NGS as costs continue to decline and technology becomes more accessible. Companies like Illumina are developing more affordable and compact sequencing devices, such as the MiSeq i100 series, to cater to smaller research and clinical laboratories.
Overall, microarrays currently play a role in genomic studies. However, the ongoing advancements and decreasing costs of NGS technologies indicate that sequencing may become the predominant method for comprehensive nucleic acid analysis in the future.
Conclusion
Gene microarray technology has greatly contributed to gene expression analysis, providing researchers with a high-throughput method for studying gene signatures, detecting genetic variations, and analyzing biological pathways. However, as sequencing technologies evolve, next-generation sequencing (NGS) is gradually replacing microarrays for many applications due to its higher accuracy, broader detection range, and decreasing costs.
While microarrays remain relevant in some research settings, the future of genomic analysis is shifting toward sequencing-based methods that offer greater sensitivity, precision, and scalability. With continued advancements in bioinformatics, platforms like Biostate.ai are committed to offering researchers high-quality RNA sequencing at an affordable price point. This space is acing RNA sequencing, so Book Your Consultation Today!
Disclaimer: This article provides general information about microarray technology and gene expression analysis. It is not intended as medical advice. For any medical concerns, always consult with a licensed healthcare professional.
FAQ
- What is gene microarray technology, and how does it help in gene expression analysis?
Gene microarray technology is a high-throughput tool for analyzing gene signatures and expression across 1000+ genes simultaneously. In this process, a small chip coated with known DNA fragments is used to hybridize with complementary RNA or DNA from a sample. The resulting fluorescent signals indicate which genes are active, inactive, or altered under specific conditions. This technique is widely used in medical research, disease diagnostics, and drug discovery, helping scientists analyze gene activity at a genomic level.
- What are the key steps involved in gene microarray data analysis, from hybridization to pathway interpretation?
There are many key steps involved in the gene microarray data analysis process, including hybridization and image acquisition, raw data extraction, normalization and scaled data, differential gene expression analysis, clustering and expression patterns, annotation and gene function analysis, and pathway and functional analysis.
- How do microarrays contribute to applications such as cancer research and drug discovery?
Microarray technology contributes hugely to cancer research and drug discovery. In cancer research, microarrays help classify cancer subtypes, identify tumor biomarkers, and guide personalized treatment plans. In drug discovery and toxicology, pharmaceutical companies use microarrays to examine how drugs affect gene expression.
- What are the major limitations of DNA microarrays, and how does next-generation sequencing (NGS) address these challenges?
The major limitations of DNA microarrays are non-linear signal response, cross-hybridization, limited detection scope, and sensitivity issues. These issues are overcome by next-generation sequencing (NGS) by offering unbiased detection, higher sensitivity & accuracy, no cross-hybridization, and lower costs over time.
- Why is NGS expected to replace microarrays in most genomic studies, and how is cost reduction driving this transition?
NGS is expected to replace microarrays because it provides greater sensitivity, accuracy, and scalability. Microarrays require pre-designed probes and are limited to known sequences, whereas NGS can detect unknown mutations, gene fusions, and alternative splicing events without prior knowledge. The cost of sequencing has been dropping significantly—companies like Illumina are developing more affordable and compact sequencing platforms (e.g., MiSeq i100 series), making it more accessible for research and clinical applications.
