Microarray technology laid the foundation for high-throughput genomics, enabling large-scale studies of gene expression and genetic variation. Although next-generation sequencing has largely taken the lead, RNA and DNA microarrays continue to be used in specific molecular biology applications, such as transcript profiling, SNP detection, and drug response analysis.
Though both tools are essential for analyzing large datasets of genetic material, they serve different purposes and operate using distinct methods.
In this blog, we will take a look at microarray vs RNA seq, focusing on their principles, applications, advantages, challenges, and ongoing roles in scientific research.
What is RNA Microarray Technology?
RNA microarray technology is used to measure gene expression levels across thousands of genes simultaneously. In this method, a solid surface (or “chip”) is embedded with thousands of known DNA probes. Researchers extract RNA from a biological sample, convert it into complementary DNA (cDNA) via reverse transcription, label the cDNA with fluorescent dyes, and then hybridize it to the array.
The degree of hybridization, measured by fluorescence intensity, correlates with the abundance of each transcript, enabling genome-wide expression profiling.

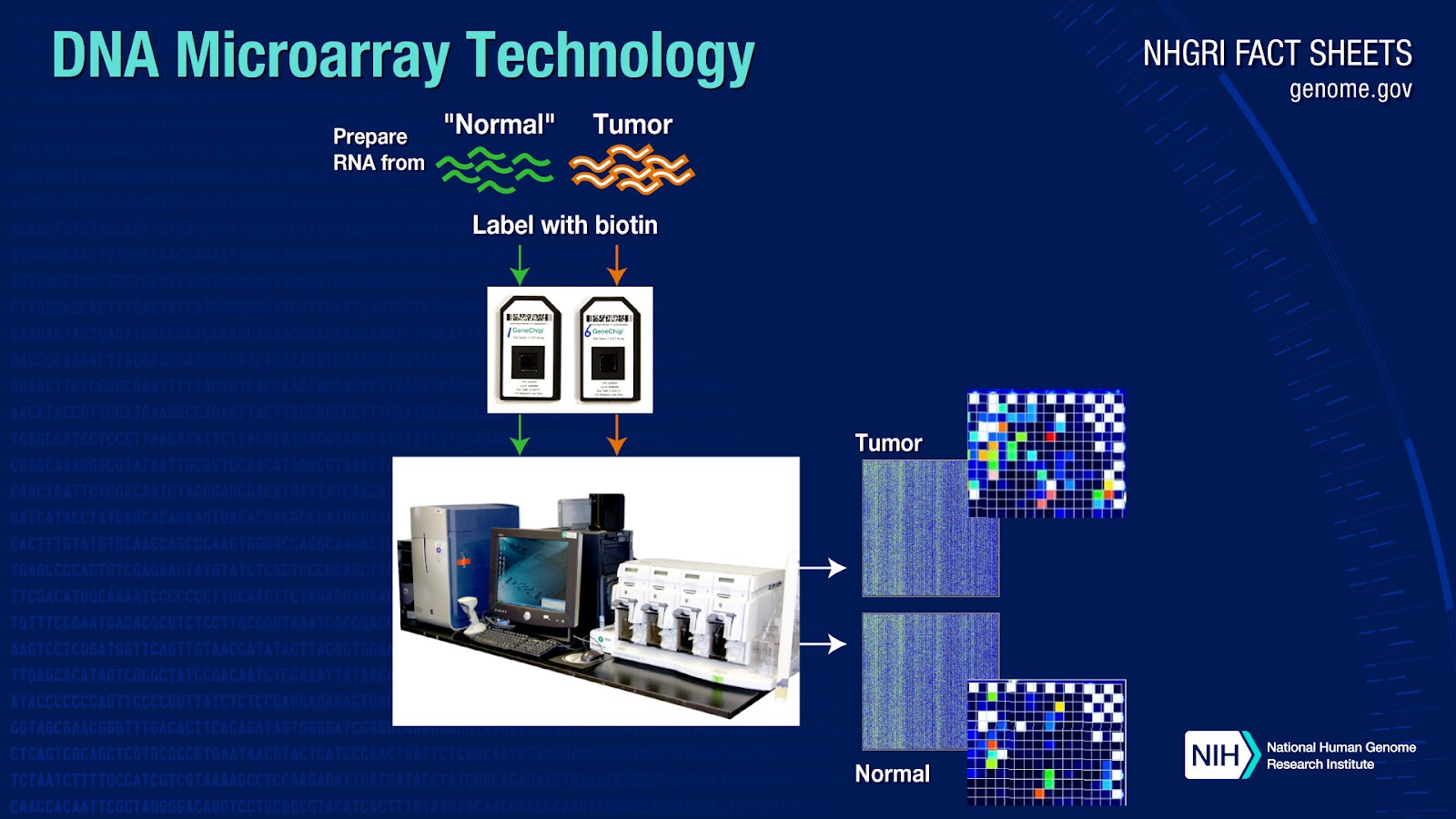

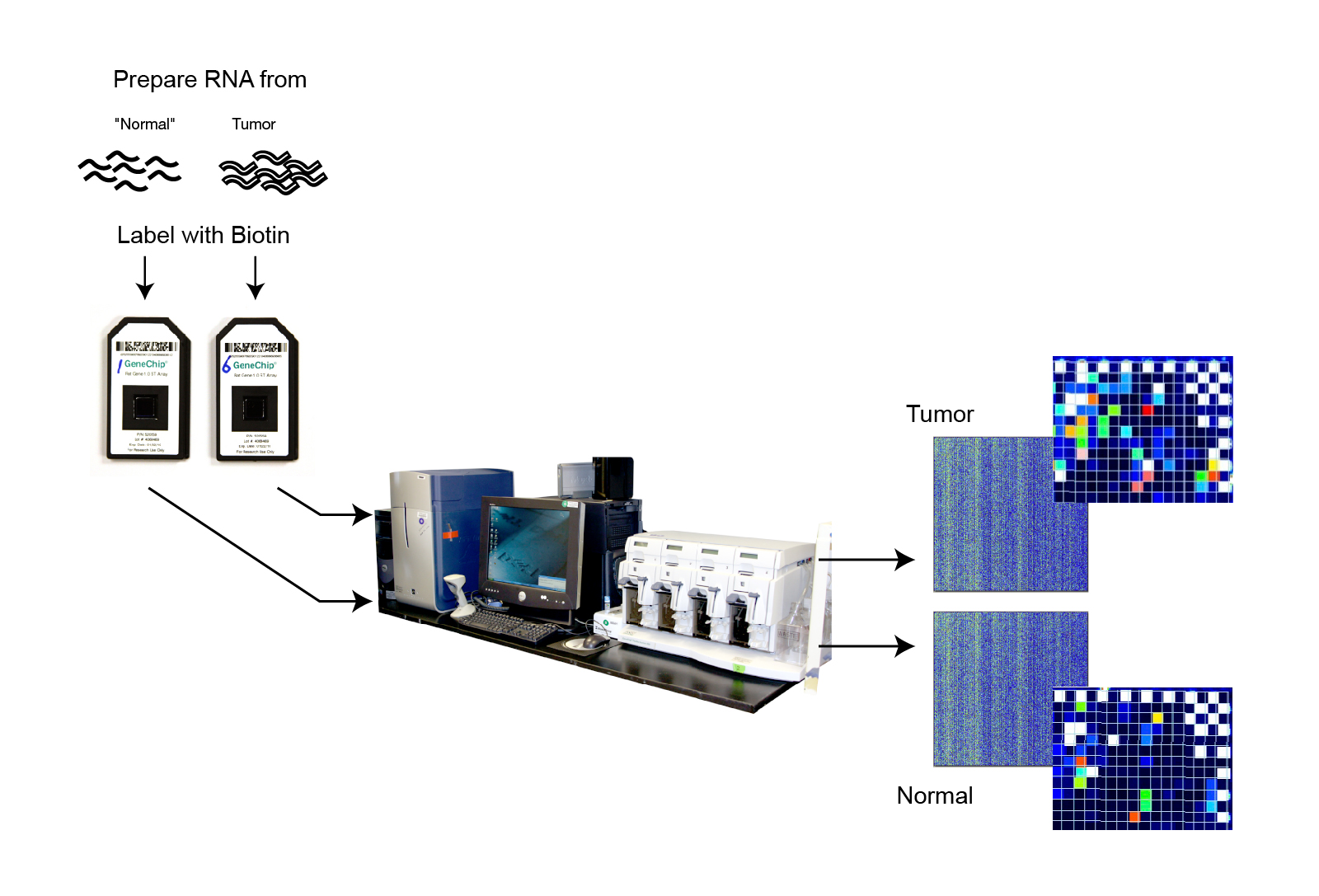

What is DNA Microarray Technology?
DNA microarray technology is primarily used for detecting genetic variations, such as single-nucleotide polymorphisms (SNPs), copy number variations (CNVs), and known mutations. The chip contains thousands of synthetic DNA probes that can hybridize with specific genomic regions. In genotyping workflows, fluorescently labeled DNA from a sample is hybridized to the chip, and the resulting fluorescence pattern reveals the presence or absence of specific variants.
While DNA microarrays can be used for expression profiling in certain contexts, they are more commonly employed for genotyping and genetic screening.
This technology is widely used in clinical genetics, for example, to detect mutations in genes like BRCA1 and BRCA2, which are associated with hereditary breast and ovarian cancers.
To better understand how microarray vs rna seq complement and contrast with each other, let’s look at their key differences.
Key Differences Between RNA and DNA Microarray Technologies
When considering microarray vs RNA seq approaches, it is important to understand the critical distinctions between RNA and DNA microarray technologies. These differences stem from the biological material analyzed (RNA vs. DNA), their applications, and their hybridization and data interpretation methods.
To make these differences clearer, we’ve outlined a comparison in the table below:
| Criteria | RNA Microarray | DNA Microarray |
| Purpose | Measures gene expression to study RNA levels. | Detects genetic variations, mutations, and SNPs. |
| Material Studied | Focuses on RNA (transcriptome). | Focuses on DNA (genome). |
| Primary Application | Gene expression profiling and cellular responses. | Genotyping and genetic variation analysis. |
| Probe Design | Based on known transcript sequences. | Based on known genomic sequences. |
| Output | Quantification of coding (mRNA) and optionally non-coding RNAs, depending on array design. | Detection of mutations, SNPs, and copy number variations. |
| Technology Focus | Transcriptional activity and gene regulation. | Genetic structure, mutations, and polymorphisms. |
| Common Uses | Disease research, treatment responses, comparative transcriptomics. | Genomic mapping, disease mutation identification, SNP detection. |
RNA and DNA microarrays are both essential tools in genomic research, yet they serve distinct purposes. RNA microarrays are primarily used to measure gene expression, providing insights into which genes are active under various conditions and how they respond to environmental factors, diseases, or treatments.
On the other hand, DNA microarrays are used for detecting genetic variations, such as mutations, SNPs, and copy number variations, allowing researchers to map the genome and understand genetic predispositions to diseases.
The primary distinction lies in the biological material analyzed, RNA for gene expression profiling and DNA for detecting genetic variations and mutations.
To better contextualize their use, let’s explore specific real-world applications of both RNA and DNA microarray technologies.
Applications of RNA vs DNA Microarray Technologies
Both RNA and DNA microarrays play pivotal roles in genomics, but they are used for different types of studies. Below, we’ll outline some of the major applications for each technology and how they contribute to advancing scientific research.

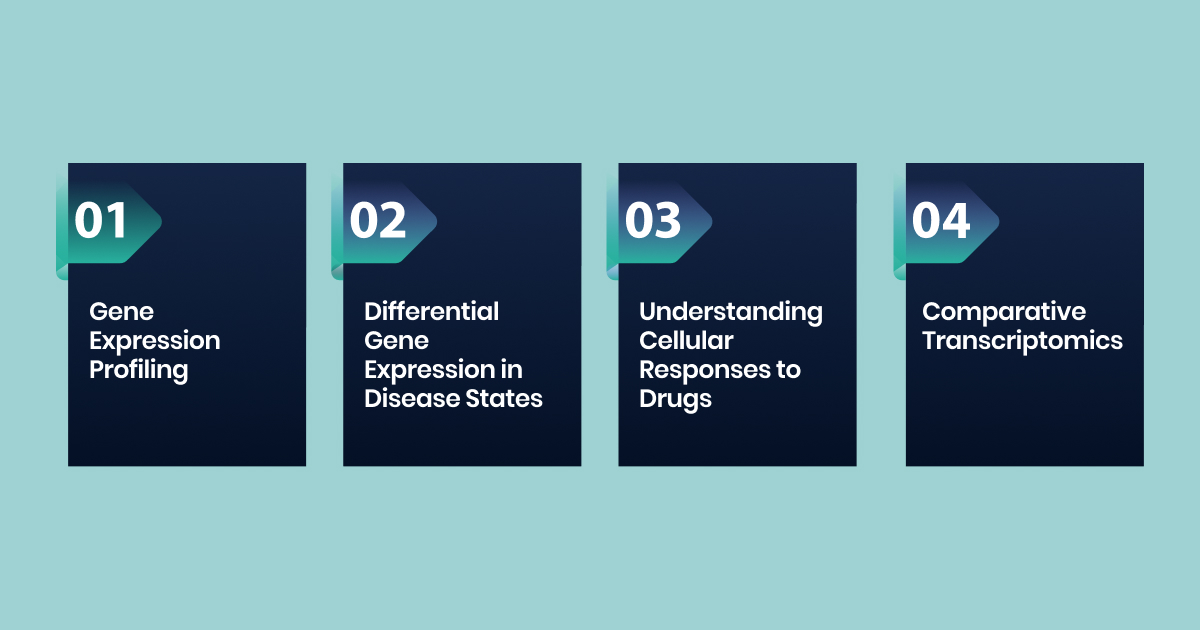

Applications of RNA Microarrays
RNA microarrays are integral for exploring transcriptomic changes. They enable researchers to monitor gene activity, compare expression levels, and understand how organisms respond to various conditions. This understanding plays a critical role when comparing microarray vs rna seq approaches.
- Gene Expression Profiling
RNA microarrays are commonly used to analyze gene expression patterns across different conditions, tissues, or organisms. By measuring the levels of mRNA in a sample, researchers can identify which genes are being actively transcribed and their relative abundance. This helps scientists understand how gene regulation responds to stimuli such as stress, disease, or drug treatment.
Example: In cancer research, RNA microarrays can be used to profile gene expression in cancerous vs. normal tissues, identifying genes that are overexpressed or underexpressed in tumors. These insights can lead to the identification of biomarkers for diagnosis and treatment. - Differential Gene Expression in Disease States
RNA microarrays are frequently used to study diseases such as cancer, neurodegenerative disorders, and autoimmune diseases. By comparing gene expression between healthy and diseased tissues, researchers can uncover the molecular mechanisms underlying these diseases.
Example: RNA microarrays have been used to study gene expression changes in Alzheimer’s disease. Identifying specific gene expression signatures can help in understanding disease progression and may point to potential therapeutic targets. - Understanding Cellular Responses to Drugs
RNA microarrays are instrumental in pharmacogenomics and drug development. Researchers use RNA microarrays to study how cells or organisms respond to different drug treatments by monitoring changes in gene expression.
Example: In drug discovery, RNA microarrays can help identify genes that are upregulated or downregulated in response to a new drug compound, providing valuable insights into the mechanism of action and potential side effects. - Comparative Transcriptomics
RNA microarrays are widely used for comparative transcriptomics, which involves comparing gene expression across different tissue types, developmental stages, or environmental conditions.
Example: By comparing gene expression in healthy tissues versus those exposed to pollutants, researchers can identify the molecular pathways involved in toxicity and environmental diseases.
Just as RNA microarrays excel in profiling gene expression, DNA microarrays have distinct applications focused on uncovering genetic variations that influence health and disease.
Applications of DNA Microarrays
DNA microarrays are widely adopted in genotyping, mutation detection, and clinical diagnostics. Their utility spans population studies, precision medicine, and hereditary disease screening.
- Genetic Variation and SNP Detection
One of the primary uses of DNA microarrays is to identify genetic variations, such as single-nucleotide polymorphisms (SNPs), insertions, and deletions. These variations can be linked to various traits, diseases, or conditions. SNP arrays, a type of DNA microarray, are particularly useful for large-scale genetic studies.
Example: DNA microarrays are commonly used in genome-wide association studies (GWAS) to find genetic loci associated with complex traits like obesity, diabetes, and cardiovascular diseases. - Copy Number Variation (CNV) Analysis
DNA microarrays are used to detect copy number variations (CNVs), structural genomic changes involving duplications or deletions of large DNA segments.. CNVs have been implicated in a variety of diseases, including cancer and developmental disorders.
Example: DNA microarrays can help detect CNVs in cancer cells, where amplifications or deletions of specific genomic regions may play a role in tumorigenesis. Identifying these variations can assist in understanding the genetic basis of cancer and developing targeted therapies. - Genetic Mapping and Personalized Medicine
DNA microarrays are widely used in genetic mapping to locate genes responsible for inherited traits or diseases. They also play a critical role in personalized medicine, where genetic information is used to tailor treatments based on an individual’s genomic profile.
Example: In personalized medicine, DNA microarrays are used to identify genetic variants that can influence an individual’s response to specific drugs, enabling clinicians to prescribe the most effective treatments. - Detecting Mutations Linked to Diseases
DNA microarrays are used to detect mutations in specific genes that are associated with genetic disorders. While SNP arrays capture common genetic variants across populations, disease-specific arrays are often used to identify known pathogenic mutations linked to hereditary conditions. This application is valuable for genetic testing and disease diagnostics.
Example: DNA microarrays are commonly used in the detection of mutations in genes such as BRCA1 and BRCA2, which are linked to an increased risk of breast and ovarian cancer.
RNA and DNA microarrays each serve distinct but complementary roles in genomics. Together, these technologies enable researchers to investigate both gene function and genetic variation, deepening our understanding of disease mechanisms and advancing biomedical research. The ongoing debate of microarray vs rna seq highlights the need for more sensitive, high-resolution techniques.
After understanding the diverse applications of RNA and DNA microarrays, it is crucial to highlight the specific benefits each technology provides to researchers and clinicians.
Benefits of RNA and DNA Microarray Technologies
RNA and DNA microarrays have significantly advanced the field of genomics and medical research, offering powerful tools for large-scale analysis of gene expression and genetic variation.
Here are the specific benefits of these technologies, particularly in the context of their application in research and clinical settings.
Benefits of RNA Microarray Technology
- High-Throughput Gene Expression Profiling
RNA microarrays allow for the simultaneous quantification of gene expression across thousands of genes in a single experiment. This high-throughput capability enables the analysis of large datasets, facilitating large-scale studies on gene expression across different tissues, conditions, or treatments.
Example: RNA microarrays have been pivotal in cancer research, particularly in identifying gene expression profiles in HER2-positive breast cancer, directly contributing to the development of targeted therapies like trastuzumab (Herceptin), which significantly improved outcomes.
- Comprehensive Transcriptomic Analysis
RNA microarrays provide a comprehensive snapshot of the transcriptome, encompassing both coding and non-coding RNA molecules. This capability allows researchers to explore gene expression dynamics, splicing patterns, and the role of non-coding RNAs in regulating gene activity, which is critical for understanding complex diseases and cellular functions.
Example: Research into non-coding RNAs, including long non-coding RNAs (lncRNAs), has been enhanced by RNA microarray technology. The identification of lncRNAs involved in tumorigenesis has opened new avenues for understanding cancer biology and discovering novel therapeutic targets.
- Gene Regulation and Pathway Insights
RNA microarrays provide essential insights into the regulatory mechanisms underlying gene expression. By comparing gene expression under different conditions, researchers can identify key regulatory networks and signaling pathways that drive cellular processes such as differentiation, stress response, and apoptosis.
Example: In neurodegenerative diseases like Alzheimer’s, RNA microarrays have been used to identify gene expression changes linked to cellular stress responses, providing valuable insights into the molecular mechanisms that contribute to disease progression and identifying potential therapeutic interventions. - Cost-Effective Relative to Sequencing
Although RNA-seq is the gold standard for transcriptome analysis due to its sensitivity and dynamic range, RNA microarrays remain a cost-effective alternative for large-scale or preliminary studies, particularly in resource-limited or explanatory settings
Benefits of DNA Microarray Technology
- Genetic Variation Detection
DNA microarrays excel at detecting genetic variations, including single nucleotide polymorphisms (SNPs), insertions, deletions, and copy number variations (CNVs). These variations are often associated with complex diseases and traits, making DNA microarrays indispensable for genetic studies and disease mapping.
Example: In pharmacogenomics, DNA microarrays have been used to identify SNPs that predict patient responses to drugs like warfarin. By identifying genetic variations related to drug metabolism, clinicians can tailor drug dosages to individual patients, minimizing adverse effects and optimizing therapeutic outcomes. - High-Throughput Genotyping
DNA microarrays enable high-throughput genotyping, allowing researchers to genotype large cohorts efficiently. This capability is essential for genome-wide association studies (GWAS), which seek to identify genetic variants associated with complex traits and diseases.
Example: GWAS using DNA microarrays has identified genetic loci associated with diseases such as type 2 diabetes and hypertension. These studies have provided crucial insights into the genetic underpinnings of these conditions and identified potential targets for drug development. - Analysis of Structural Variations
DNA microarrays are also well-suited for detecting structural variations in the genome, such as CNVs and chromosomal rearrangements. These variations are often implicated in cancer and other genetic disorders, making DNA microarrays a valuable tool for understanding genome instability and its role in disease.
Example: DNA microarrays have been used to detect CNVs in cancer genomes, where amplifications or deletions of specific genes may drive tumorigenesis. This information is critical for identifying biomarkers and potential therapeutic targets in oncology. - Facilitating Personalized Medicine
DNA microarrays are integral to the field of personalized medicine, providing detailed genetic profiles that can inform individualized treatment strategies. By identifying genetic variations that influence drug responses, disease susceptibility, and prognosis, DNA microarrays help tailor medical interventions to an individual’s genetic makeup.
Example: DNA microarrays are routinely used to detect BRCA1 and BRCA2 mutations, which are linked to an increased risk of breast and ovarian cancer. This information is vital for early detection, risk assessment, and the development of personalized prevention strategies for at-risk individuals.
While RNA and DNA microarrays offer powerful insights, it is important to also consider the limitations associated with these technologies to make informed decisions in experimental design.
Challenges and Limitations of RNA and DNA Microarray
Despite their broad utility in genomics and biomedical research, RNA and DNA microarrays present methodological and technical constraints that must be considered during experimental planning.
Here are some of the most common challenges and limitations of RNA and DNA microarray technologies
| RNA Microarrays | DNA Microarrays |
| 1. Limited to Known Transcripts: RNA microarrays rely on pre-designed probes that match known gene sequences. As a result, they cannot detect novel or previously unannotated transcripts, which limits their use in exploratory research. | 1. Detection of Only Known Variants: Like RNA microarrays, DNA microarrays are limited to detecting pre-characterized mutations or polymorphisms. They cannot identify new mutations or structural variations not included in the probe design. |
| 2. Lower Sensitivity for Rare Transcripts: Low-abundance RNA species may not be detected accurately, especially in complex samples where highly expressed genes dominate the signal. This can result in incomplete expression profiles. | 2. Resolution Limitations: DNA microarrays lack the resolution to detect small-scale mutations or complex genomic rearrangements, which are often better captured by sequencing technologies. |
| 3. Cross-Hybridization: Probes might hybridize with sequences that are similar but not identical to the intended target, leading to non-specific binding and potentially false-positive results. | 3. Cross-Hybridization: Risk of non-specific binding to similar sequences, leading to false positives. |
| 4. Custom Design Constraints: Creating specialized arrays for unique studies can be expensive and time-intensive. | 4. Cost and Design Constraints: Designing custom arrays for niche or novel applications can be both costly and time-consuming, especially when off-the-shelf arrays lack the required coverage. |
These limitations highlight the importance of selecting the appropriate platform based on study objectives, available resources, and the level of discovery required.
Although microarrays are valuable, they have limitations in detecting rare or novel transcripts. Biostate AI provides RNA sequencing to fill these gaps effectively.
How Biostate AI Enhances RNA and DNA Microarray Research
While RNA and DNA microarrays are powerful tools, they can miss rare transcripts or novel discoveries. Biostate AI bridges this gap with complete, end-to-end RNA sequencing, offering deeper insights at an affordable cost.
Here’s how Biostate AI supports and extends your microarray research:
- Full-Service RNA Sequencing: From sample collection to final insights, Biostate AI handles the entire workflow, so you can focus on discovery, not logistics.
- Broader Sample Compatibility: It works with blood, tissue, cell cultures, or purified RNA, offering flexibility across research designs.
- High Sensitivity & Depth: Detects rare transcripts and unannotated RNAs that microarrays may miss.
- Built-In Analytics: AI-powered tools help interpret data faster and with more clarity, ideal for validating microarray findings or uncovering new patterns.
- Cost-Effective at Scale: High-quality results without the high cost, making it perfect for both exploratory and large-scale studies.
- Short-Term or Long-Term Studies: Supports both one-time experiments and longitudinal projects based on your research goals.
If you want easy, reliable RNA sequencing to support your microarray research, Biostate AI is here to help.
Conclusion
RNA and DNA microarrays have allowed scientists to explore gene expression and genetic variation at scale, helping us understand how diseases work and how treatments can be improved. But in the era of high-resolution genomics, microarrays are no longer the final stop, they’re often just the beginning.
They offer a strong foundation, but more profound questions demand deeper data. At Biostate AI, we believe every dataset, whether from microarrays or other platforms, deserves deeper analysis and clearer insights.
That’s why we offer end-to-end RNA sequencing that goes beyond what arrays can capture. We help you detect rare transcripts, uncover novel patterns, and make sense of your results faster with built-in AI tools.
Contact our team today and see how our RNA sequencing solutions can help your microarray studies.
